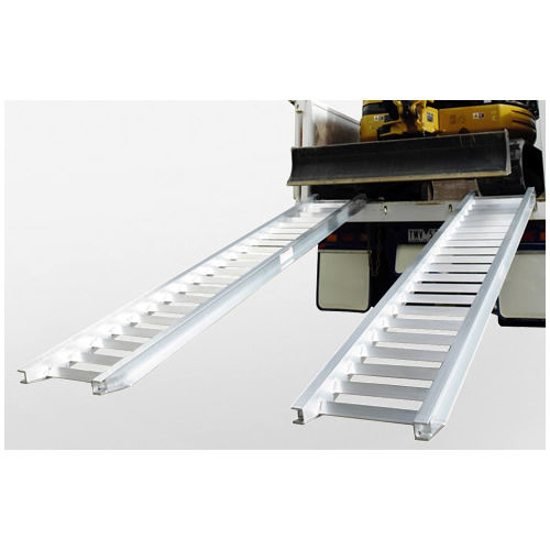

Multi Purpose Truck Loading Ramps for Track or Pneumatic Tyres

This series of truck loading ramps is perfect when using a combination of steel tracks, rubber tracks, steel tracks with rubber pads and also vehicles with rubber tyres. Range up to 4 metre lengths and 11,500 kg capacity.
Part No: EW-3033T
*
*
$1,730.00 excl GST

This series of truck loading ramps is perfect when using a combination of steel tracks, rubber tracks, steel tracks with rubber pads and also vehicles with rubber tyres. Range up to 4 metre lengths and 11,500 kg capacity.

  • Australian Made
  • Aluminium Construction
  • Steel Pin connection included
  • Compliance Plate and Serial NumberĀ (to keep Workcover off your back!)
  • All designs have been tested and certified by NATA
  • Hinged connections or other custom connection also available

Truck loading ramp perfect for loading and unloading

  • Excavators
  • Bobcat
  • Loaders
  • Tractors

If you only use vehicles with pneumatic tyres then please see our Pneumatic Range here.

Please contact us if you need ramps at other length / capacity as we probably can assist.

Part
Number
Rated Capacity
(kg)
Ramp Mass
(kg)
Ramp Length
(m)
Internal Track Width
(mm)
Ramp Width
(mm)
Ramp Depth
(mm)
Rung Recess
(mm)
EW-3033T3000323.335045011040
EW-3635T3600393.540050012040
EW-4040T4000474.040051012545
EW-4536T4500413.640051012545
EW-4536TW4500433.645056012545
EW-4833T4800373.340051012545
EW-4833TW4800393.345056012545
EW-6036T6000533.650062016052
EW-7536T7500583.650060018460
EW-9037(T)9000713.650064020060
