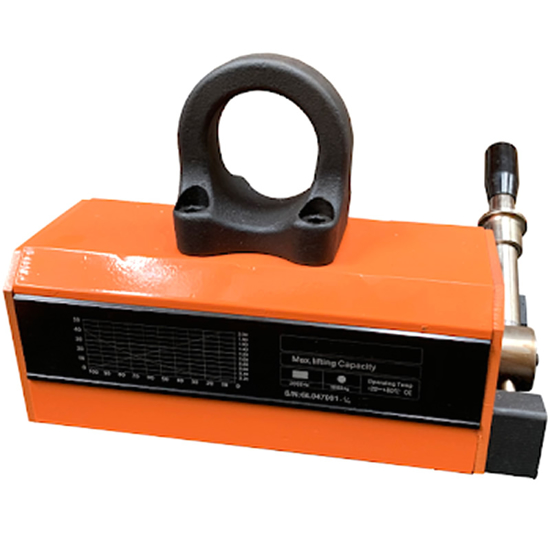

Magnetic Lifter 1000Kg Capacity - Special Limited Stock

1000kg capacity magnetic lifter - special limited stock with breakaway strength of 3500kg
Part No: EW-ML1000B
*
$1,350.00 excl GST

Magnetic Lifters 1000Kg Lifting Strength



The magnetic lifter improves safety to lift and handle steel and iron in any workplace

Specifications:

  • Rated Capacity: 1000kg
  • Pull Off Strength: 3500kg
  • Length: 330mm
  • Width: 129mm
  • Height: 130mm
  • Handle Height: 262mm
  • Working Temperature: less than 80c
  • Weight: 42kg


Magnetic Lifter Effective Percentage
Steel Thickness / Percentage of Rated Capacity

100mm / 100%
90mm / 100%
80mm / 100%
70mm / 100%
60mm / 100%
50mm / 90%
40mm / 75%
30mm / 55%
20mm / 35%

The effective lifting capacity of the magnetic lifter can also be affected by

Material thickness - actual thickness of the steel that you are lifting
Air Gap - the gap between the steel and the lifting magnet eg rust, paint, dirt and uneven steel surface
Steel Carbon Composition - high carbon steel reduces the lifting capacity by 30% while cast iron will be 50% less
Round Bar and Pipe - The lifting capacity could be 30-50% less than flat plate but the lifting magnet is fitted with a groove to assist in the lifting of round items. The steel wall thickness will also affect the lifting capacity
Sheet - If the sheet is too thin you may inadvertently lift the lower sheets from a steel stack. This will make the lift extremely unsafe and this should not be attempted.
