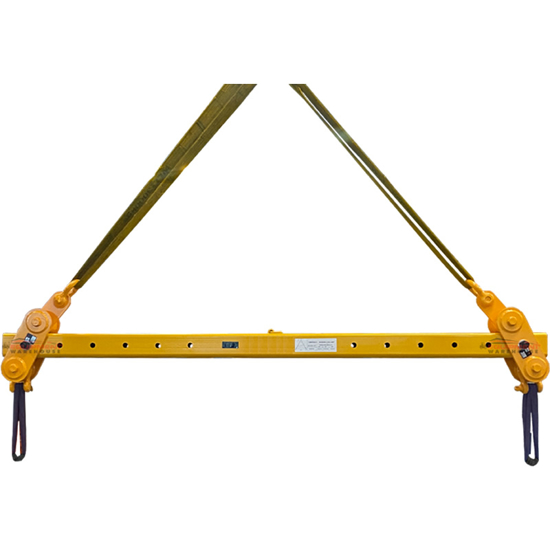

Picture of Heavy Duty Crane Spreader Bar 20000Kg 3300mm
Picture of Heavy Duty Crane Spreader Bar 20000Kg 3300mm
Picture of Heavy Duty Crane Spreader Bar 20000Kg 3300mm
Picture of Heavy Duty Crane Spreader Bar 20000Kg 3300mm
Picture of Heavy Duty Crane Spreader Bar 20000Kg 3300mm

Heavy Duty Crane Spreader Bar 20000Kg 3300mm

This Multi Position Spreader Bar is designed to provide support, stability and minimising lateral forces during lifting operations by crane, to ensure heavy loads are safely transported and placed onsite.
Part No: EW-CSHD20x3.3
*
$6,770.00 excl GST

Heavy Duty Crane Spreader Bar 20000Kg 3300mm

This Multi Position Spreader Bar is designed to provide support, stability and minimising lateral forces during lifting operations by crane, to ensure heavy loads are safely transported and placed onsite.
Features:
  • Multiple lifting positions
  • 20, 48 & 100 tonne capacity models available
  • Available in 3 standard bar lengths 3.3, 6 or 8m
  • Other lengths and capacities available on request
  • Shackles supplied
  • Suits most lifting application required by overhead crane
  • Certified to the relevant Australian Standards
  • Enamel paint finish
Specifications:
  • Working Load Limit (kg) : 20,000
  • Length (mm) : 3300
  • No. of Lift Positions : 6
  • Min. Lift Centre (mm) : 1000
  • Max. Lift Centre (mm) : 3000
  • Unit Weight (kg) : 261
