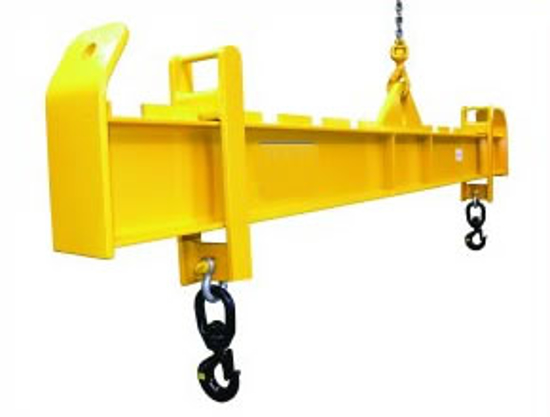

2 Tonne Crane Spreader Beam 2 Metres

Spreader Beams consist of a long beam that converts the lifting load into a bending moment through the beam. This is a much less efficient use of material, and as a result, spreader beams are in general heavier than spreader bars. The main benefit of spreader beam is the substantially reduced headroom required to perform the lift. These qualities make spreader lifting beams well-suited to lighter, shorter span lifts that have a small headroom requirement, such as in smaller manufacturing shops or storage facilities. The EW-CSB 2x2 Crane Spreader Beam is 2 metres in length and has SWL of 2 tonnes. The 2x2 Spreader Beams are supplied standard with 5 lifting positions and also supplied with 2 safety swivel hooks.
Part No: EW-CSB2-2M
*
$1,000.00 excl GST

2 Tonne Crane Spreader Beam 2 Metres

Crane Spreader Beams, spreader bars and lifting beams are very similar devices in common use in almost every industry. These devices have very similar functions; they allow a single crane to lift loads from multiple locations, to spread out the load and provide balance to the lift. Crane Spreader Beams consist of a long beam that converts the lifting load into a bending moment through the beam. This is a much less efficient use of material, and as a result, spreader beams are in general heavier than spreader bars. The main benefit of spreader beam is the substantially reduced headroom required to perform the lift. These qualities make spreader lifting beams well-suited to lighter, shorter span lifts that have a small headroom requirement, such as in smaller manufacturing shops or storage facilities.

The EW-CSB 2x2 Crane Spreader Beam is 2 metres in length and has SWL of 2 tonnes. The 2x2 Spreader

Crane Spreader beam is painted safety yellow colour in enamel paint
Spread Range: 800mm - 2000mm
Beams are supplied standard with 5 lifting positions
Supplied with 2 safety swivel hooks

Custom lengths and custom capacities are available on request

Also known as Crane Lifting beam

Products specifications
FinishPainted
SWL (kg)2000
Dimension "A" (mm)2000
Unit Weight (Kg)70
