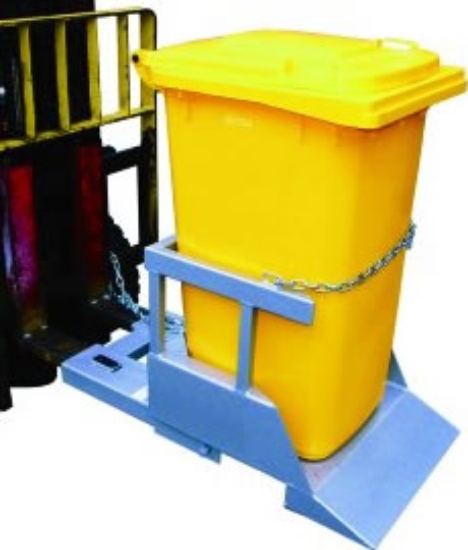

Forklift Mounted Wheelie Bin Tipper for 1 Wheelie Bin
Suitable for emptying 240 litre plastic wheelie bins. The bin is wheeled into the Tipper and secured with safety chains.
- *
Suitable for emptying 1 x single 240 litre plastic wheelie bin. The bin is wheeled into the forklift mounted tipper and secured with safety chains. The 180 degree tipping operation is simple and safe with the operator never having to leave the seat during the tipping cycle.
The finish on the Wheelie Bin Tipper is enamel painted.
Suitable for most Class 2 Forklifts and all 240 litres wheelie bins.
Large model for 2 x wheelie bins also available
Products specifications
Finish | Painted |
SWL (kg) | 500 |
Load Centre (mm) | 1200 |
Pocket Size (mm) | 165 x 65 |
Pocket Centres (mm) | 340 |
Rotation (degrees) | 180 |
Horizontal Centre of Gravity (mm) | 720 |
Vertical Centre of Gravity (mm) | 90 |
Length (mm) | 1167 |
Height (mm) | 860 |
Width (mm) | 610 |
Unit Weight (Kg) | 100 |
