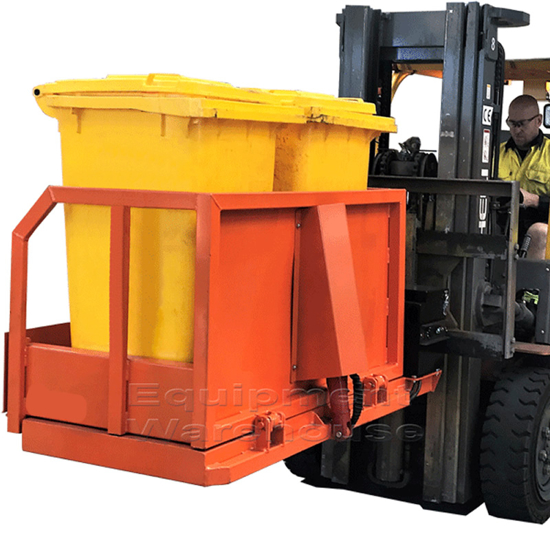

Forklift Hydraulic Sideway Double Wheelie Bin Tipper

Forklift Hydraulic Sideway Double Wheelie Bin Tipper

Forklift Sideway Hydraulic Wheelie Bin Tipper with fitted Hydraulic Power Pack is designed to safely lift, transport and empty wheelie bins of most sizes with a forklift.

Features:

• Suits 80,120, 240 or 660 litre wheelie bins
• Allows one or two wheelie bins to be rotated 120° for sideways emptying
• Ramp fitted for wheeling bin into position
• Ratchet tensioners for simple and secure fastening of 660L bin to attachment
• Wheel guide used to position 80/120/240L bin in place
• Slip-on attachment and safety chain allows quick connection to a forklift
• Enamel paint finish

Hydraulic Power Pack Features:

• Remotely controlled pendant (50m distance range) with spare pendant supplied
• 12-Volt DC Hydraulic Pump
• Battery & battery charger
• Robust cabinet box protects all components
• Quality hydraulic components
• Incorporated safety features include a two-button opening function and emergency stop
• 180 AMP main fuse protects the full electrical circuit whilst a secondary 10AMP fuse adds further protection to the remote system and solenoid coils

Specifications:

• Working Load Limit (WLL) 500kg
• Rotation Angle 120°
• Unit Weight 285kg
• Fork Pocket Size 185 x 65mm
• Fork Pocket Centres 635mm
