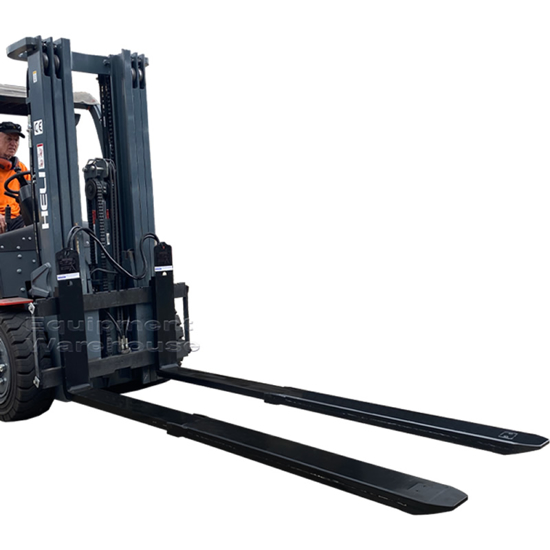

Extendable Forklift Tynes Class 2 1200mm/850mm (Dual Cylinder)

Extendable Hydraulic Forklift Tynes hydraulically extend 1200mm - 2050mm and retract for double deep stacking and one-sided loading/unloading of truck without repositioning your forklift.

Part No: EW-EFT-C2-425-1200-850

Shipping Charges *

$5,610.00 excl GST

Extendable Forklift Tynes Class 2 1200mm/850mm (Dual Cylinder)

Extendable Hydraulic Forklift Tyne hydraulically extend and retract for double deep stacking and one-sided loading/unloading. These forks help reduce loading times, increase warehouse storage capacity and vastly improve safety. One-sided loading/unloading eliminates the need to turn the vehicle or drive forklift to the opposite side making the operation safer. Double deep stacking can increase warehouse capacity by up to 30% compared to single deep warehouse operation.

Description:

- - Allows double deep stacking, increasing warehouse capacity
  - Allows one-sided loading and unloading, saving time and increasing driver safety
  - Phasing cylinders keep fork motion in sync
  - Reinforced heel gives less deflection
  - Easy connection of the forks onto the fork carrier
  - Dual cylinder models provides greater push/pull power, ideal for performing under demanding circumstances
  - Requires one additional hydraulic function
  - Local technical support and spare parts
  - Optional Pallet Stops prevent forks from protruding through to the rear pallet
  Specifications:
  - Class : 2
  - WLL at 600mm LC (kg) : 2500
  - Cylinders per fork : Dual
  - Length (mm) : 1200
  - Extension (mm) : 850
  - Section w x h (mm) : 162 x 57
  - Lost Load (mm) : 45
  - Weight per pair (kg) : 192
