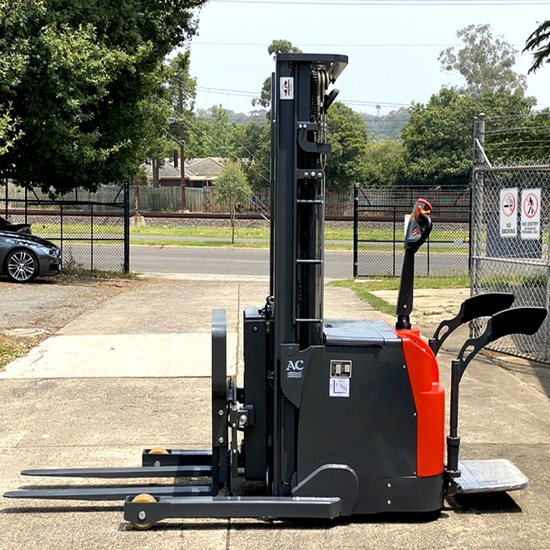

Walkie Stacker Electric Reach Stacker 1500Kg

Walkie Stacker Electric Reach Stacker 1500Kg

For exceptional productivity and work efficiency in your material handling applications, the Q Series gives you a good combination of power, flexibility and operator comfort.

Description:

• Forks forward distance: 500mm
• Side shift
• Lifting height is 4500mm
• Max Capacity is 1500kg

Specification:

• Power unit: electric
• Rated traction weight: 1500kg
• With Sideshift Minus 150kg
• Lifting Height: 4500mm
• Load center: 500mm
• Axle center to fork face: 365mm
• Wheelbase: 1370mm
• Driving wheel size: 250x75mm
• Bearing wheel size: 150x82mm
• additional wheels: 149x60mm
• Wheels, number front/rear (x=driven): 1, 4/2
• Track width (rear wheels): 620mm
• Track width (front wheels): 984mm
• Mast/fork carriage tilt, forward/backward: 3/5 degree
• Height of mast, lowered: 2210mm
• Overall Length: 2500mm
• Fork length: 1150mm
• Fork dimension: 35/100/1150mm (height/width/length)
• Lowered fork height: 40mm
• Length to fork face: 1300mm
• Overall width: 1113mm
• Fork width range: 200mm-840mm
• Forward distance: 500mm
• Min Ground Clearance: 55mm
• Aisle width with pallet 1000×1200 across forks: 2755mm
• Aisle width with pallet 800×1200 along with forks: 2806mm
• Min. Turning radius: 1685mm
• Travel speed, laden/unladen: 5.2/5.5 km/h
• Lifting speed, with/without load: 110/180 mm/s
• Lowering speed, with/without load: 140/150 mm/s
• Forward speed, with/without load: 150/160 mm/s
• Maximum climbing ability, with/without load: 6%/8%
• Service brake: electromagnetic
• Dive motor, 60-minute rating: 1.5kw
• Battery voltage/rated capacity:24V/350Ah
• Battery weight (+-5%): 330kg
• Type of drive control: AC
• Unit Weight: 2320 kg
