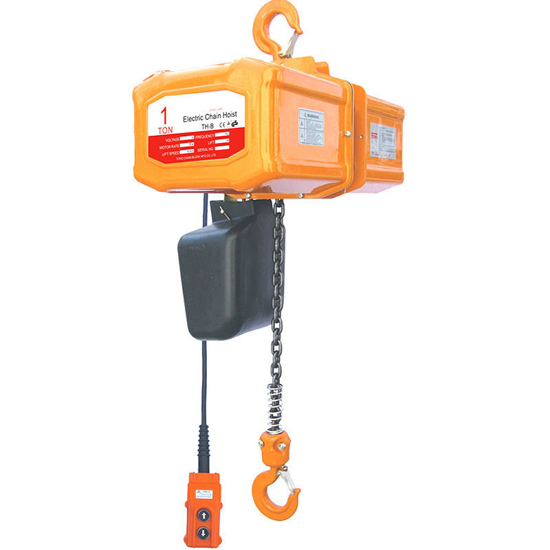

Toho Electric Chain Hoists Single Phase 1 Tonne 3M Lift

Toho Electric Chain Hoist with 1000kg capacity and 3m lift. Load Limited, Thermal overload prevention, Lightweight, compact design with high efficiency motor, Pressed steel structure, high strength body, High tensile alloy steel top & bottom hooks
Part No: EW-TECH0103
*
$2,440.00 excl GST

Toho Electric Chain Hoists Single Phase 1 Tonne 3M Lift

Features:
  • Load Limited
  • Thermal overload prevention
  • Lightweight, compact design with high efficiency motor
  • Pressed steel structure, high strength body
  • High tensile alloy steel top & bottom hooks
  • Grade 80 - 7.1mm Alloy Steel load chain
  • Limit switches fitted at top and bottom ends to prevent chain runout
  • 240V, 50Hz Single speed Motor 1200 Watts.
Specifications:
  • Capacity : 1 tonne
  • Standard Lift M : 6
  • Running Test Load : 12.5 kN
  • Motor Power : 1.2 kW
  • No. of Chains : 1
  • Dia of Chains : 7.1 mm
  • Lifting Speed : 6 m/min
  • Net Weight : 63 Kg
