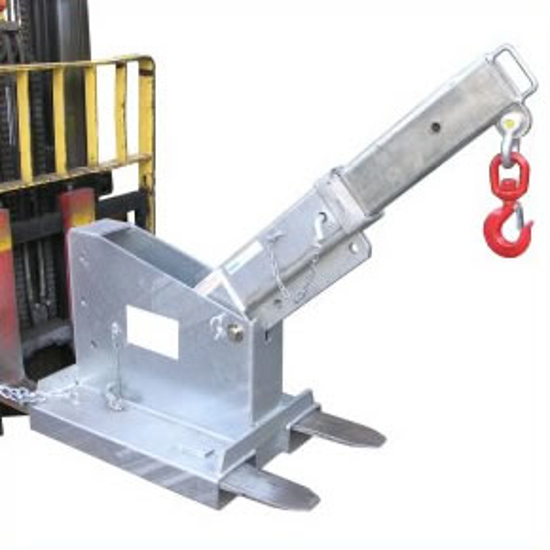

Tilt Jib Short Jib Attachment 4750Kg SWL

The type EW-TJS5 Tilt Jib (Short) is designed with a tilt facility allowing extra height to compensate for the hook and sling length lost when lifting with jib attachments.

Part No: EW-TJS5-G

Shipping Charges *

Call for pricing

Tilt Jib Short Jib Attachment 4750Kg SWL

The type EW-TJS5 Tilt Jib (Short) is designed with a tilt facility allowing extra height to compensate for the hook and sling length lost when lifting with jib attachments. A maximum of 1.36 metres can be gained while the Jib can be fully extended to 2.0 metres. Simply slide onto the Fork Tines and secure with safety chain.

Supplied with safety swivel Hook and Shackle

Products specifications

Finish	Zinc
SWL (kg)	4750
Load Centre (mm)	920
Pocket Size (mm)	185 x 75
Pocket Centres (mm)	370
Horizontal Centre of Gravity (mm)	650
Vertical Centre of Gravity (mm)	300
Overall Length when closed (mtr)	1.36
Unit Weight (Kg)	180
