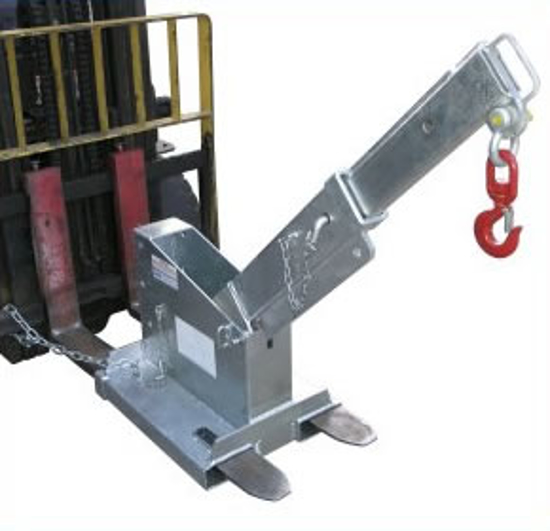

Tilt Jib Short Jib Attachment 2500Kg SWL

The type EW-TJCS25 Tilt Jib (Short) is designed with a tilt facility allowing extra height to compensate for the hook and sling length lost when lifting with jib attachments.
Part No: EW-TJCS25
*
$1,920.00 excl GST

The type EW-TJCS25 Tilt Jib (Short) is designed with a tilt facility allowing extra height to compensate for the hook and sling length lost when lifting with jib attachments. A maximum of 1.4 metres can be gained while the Jib can be fully extended to 2.0 metres. Simply slide onto the Fork Tines and secure with safety chain.

  • Supplied with safety swivel Hook and Shackle
Products specifications
SWL (kg)2500
Load Centre (mm)825
Pocket Size (mm)165 x 65
Pocket Centres (mm)337
Horizontal Centre of Gravity (mm)650
Vertical Centre of Gravity (mm)350
Overall Length when closed (mtr)1.35
Unit Weight (Kg)130
ColourZinc Finish
