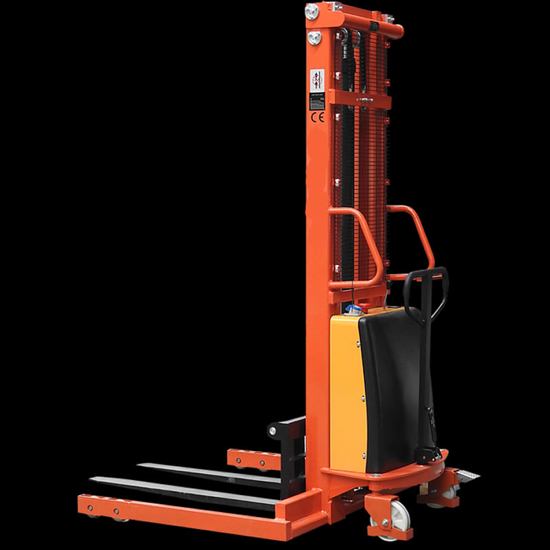

Semi Electric Straddle Stacker 1500kg 3500mm Lift

Semi-electric pallet stacker is easy to control, and environmental efficiency, which is widely used in overhead cargo and pallet moving and stacking. Using SPN is safe and efficient in factories, warehouses, and logistics centers. While in some narrow passage, floors, and other high rack warehouses, using SPN is more flexible, silent and environmental.

Part No: EW-PS15M

Shipping Charges *

Call for pricing

Semi Electric Straddle Stacker 1500kg 3500mm Lift

With electric lift and manual push, SPN series semi-electric pallet stacker is easy to control, and environmental efficiency, which is widely used in overhead cargo and pallet moving and stacking. Using SPN is safe and efficient in factories, warehouses and logistics centers. While in some narrow passage, floors, and other high rack warehouses, using SPN is more flexible, silent and environmental.
Straddle Legs Models suit for use on Standard Australian Pallet.

Specification:

Power: Battery
Capacity: 1500kg
Load center distance: 450mm
Lifting height: 3500mm
Fork length: 1150mm
Fork width: 210-830mm
Overall length: 1800mm
Overall width: 1430mm
Inside width between two legs: 1230mm
Overall height: 2220mm
Min.fork height: 85mm
Single fork width: 100mm
Lift motor: DC12V/1.5Kw
Battery voltage: 12V/120Ah
The charger: 12V/20A
N.W.: 460kg
