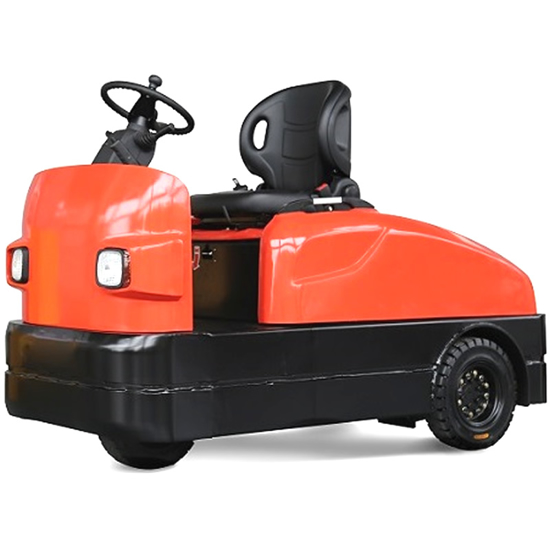

Ride On Electric Tug 6000kg

Electric tow tractor can tow up to six tons. With its simple design and optimized usability, this truck will support your workforce and reduce injuries due to back problems. This electric tractor is a simple and powerful tool to tow trolleys around your warehouse, production or logistics centre. To manoeuver narrow aisles in warehouses or in production, we put extra effort in designing our electric tractor extra compact. With its 870mm solid rubber tires, the QDD series is ready for a variety of operations. It does not matter if you are using the tow tractor on flat ground in the warehouse, or on uneven floors or outdoors, the electric towing tractor will safely bring your trolleys to their destination. Eliminate strain and pain for your workers now as the electric tractor can pull trolleys up to 6000Kg electrically.

Part No: EW-TT6000

Shipping Charges *

$24,295.00 excl GST

Ride On Electric Tug 6000kg

To manoeuver narrow aisles in warehouses or in production, we put extra effort in designing our electric tractor extra compact. With its 870mm solid rubber tires, the QDD series is ready for a variety of operations. It does not matter if you are using the tow tractor on flat ground in the warehouse, or on uneven floors or outdoors, the electric towing tractor will safely bring your trolleys to their destination. Eliminate strain and pain for your workers now as the electric tractor can pull trolleys up to 6000Kg electrically.

Description:

Adjustable Steering Wheel
Side Battery Change & Easy Access
Automotive Control

AC Controller:

The innovative AC drive system with quick response, accurate control, impact protection, excellent power efficiency.
Regenerative braking increases the life of battery.

Operability & Safety:

Spacious driving room.
Spacious comfortable seat with buffering function.
Control lever is unique designed by ergonomics, closer to the operator for easy operation.
Steering wheel could be adjusted with big angle to meet operator’s need.
Emergency pause button is right beside operator’s hand, the power can be immediately cut off in shortest time.
The layout of steering wheel, brake, foot pedal other instruments are the same with the electric forklift, which makes it convenient to operate.
Large battery space suitable for batteries of different capacity.
The button at the end of the traction allows the traction to make small moves.

Brake:

Maintenance-free braking system makes braking safe comfortable.
Automatically engaging parking brake secure stopping, even on ramps.
Electro-magnetic brake, brake wet disc brake reduces energy consumption extend the vehicle's duty cycle per charge.

Maintenance:

American AMP connectors with top quality, prevents moisture contaminants from interrupting truck operation in all environments. Besides, all the wires cables are reliably protected fixed, which greatly reduces the electrical error.
The bottom of the drive motor has a waterproof dust proof cover, which protects the motor effectively.
Easily removed back cover, makes maintenance easy.

Specifications:

Rated capacity : 6000 kg
Wheelbase Y : 1110 mm
Service weight (includes battery) : 1150 kg
Tyre type driving/load wheels : Solid Rubber
Track width, rear, loading side B11 : 820 mm
Height overhead guard (cabin) H6 : 1320 mm
Seat height H7 : 947 mm
Tow coupling height H10a/b : 361(221/291/431) mm
Rear overhang L5 : 471 mm
Loading platform width B9 : 700 mm
Overall length L1 : 1966 mm
Overall width B1/B2 : 1010/990 mm
Outer turning radius : 677 mm
Inner turning radius : 677 mm
Ground clearance, centre of wheelbase M2 : 150 mm
Travel speed, lade / unladen : 7/17 km/h
Max drawbar pull, laden/ unladen S2 5min. : 4500 N
Max gradeability, laden / unladen S2 5min. : 5/20 %
Service brake : hydraulic/ mechanical
Mileage covered by a single charge : 60 km
Drive Motor rating S2 60min. : 6 kw
Battery : 48/275 V/Ah
Battery weight : 506 kg
