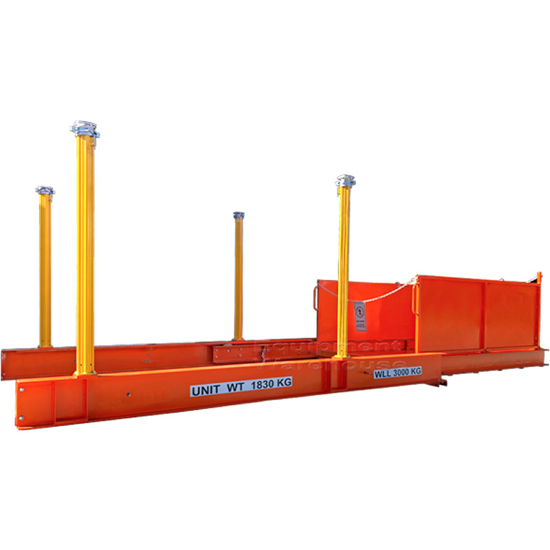

Retractable Crane Loading Deck 3000kg

Retractable Crane Loading Deck 3000kg

Retractable Crane Loading Deck is a safe, convenient and cost effective access solution for loading and unloading materials at multi-storey and high rise projects by crane.  Designed to suit smaller construction or demolition projects with limited or constrained space and lighter material loads, this temporary platform helps increase site safety and productivity, while reducing labour time and costs.

Description:

• Allows materials and equipment to be loaded on or off different levels by cranes during construction
• Retractable design allows vertical stacking of decks
• Retracts almost flush with building (150mm protrusion) increasing usable loading space when using multiple decks
• Lightweight unit easily rolls in and out for loading by one operator
• 3 Tonne WLL
• Quick & easy installation
• Simple locking system
• 4 Adjustable aluminium support props supplied
• Front and rear safety chains for added safety
• Stackable for storage and transport ease
• Enamel paint finish

Specification:

• Working Load Limit (WLL)     : 3000kg (uniformly distributed load)
• Concentrated Load : 2000kg over 1 square metre
• Overall Platform Dimensions (excl props) : 4766(l) x 2500(w) x 1611(h) mm
• Outboard Dimensions : 2800(l) x 2260(w) mm
• Inboard Dimensions (inside building space) : 4616(l) x 2500(w) mm
• Adjustable Height (as supplied std) : 2206 - 3756mm
• Unit Weight : 1830kg
