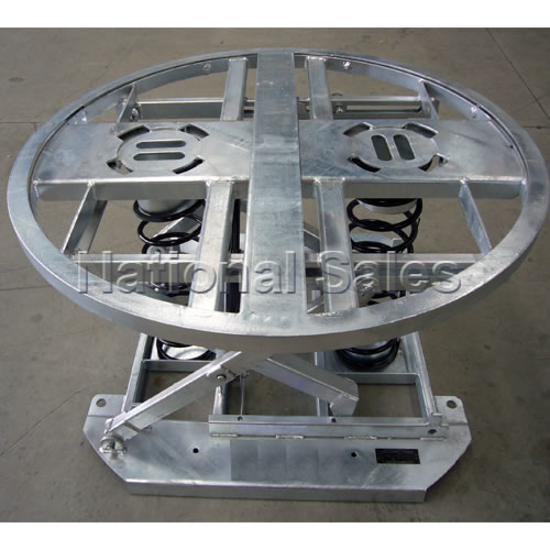

Pallet Leveller / Spring Lift with Rotator

The EW-PL Pallet Leveller / Pallet Spring Lift with Rotator is designed to minimise bending and stretching when loading and unloading goods from a pallet. The table can be raised and lowered 475mm while the rotating upper ring allows for pallet rotation during stacking. With an optimum working height operator fatigue is reduced while productivity is increased and costly injuries avoided.

The EW-PL Pallet Leveller comes complete with three springs. Either one, two or three of these are used as required depending on weight of  the pallet.
A shock absorber provides gradual and controlled raising and lowering.

Complete with leveling feet and a rotational lock on the upper ring.
Integrated fork pockets allow for easy transportation using a forklift.

Specifications

• Rotating Table Diameter: 1110mm
• Base size: 915mm square
• Lowered Height: 230mm
• Raised height: 705mm
• Forklift Pocket Width: 170mm
• Pocket Centres: 750mm
• SWL Working Load Limit (WLL): 2000kg
• Unit Weight: 168kg
• Durable long-life galvanised finish
