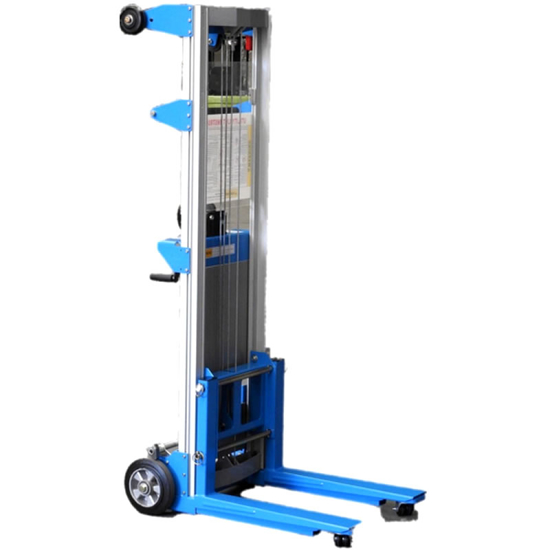

Narrow Leg Lifter Aluminium Hand Stacker Winch

Narrow Leg Lifter Aluminium Hand Stacker Winch

Duct lifter is an engineering control, which can reduce the MSD from manual handing, stooped postures and overhead work. This lifter can support the weight of the duct and other materials.

Description:

• These aluminum winch lifters are great for assisting in the lifting, positioning, and installation of goods up to 1200mm or 2500mm in height.
• All units fold for easy storage and transport
• Manual hand winch control with automatic braking action
• Foot pedal brake
• Fits through standard doorways
• Walk behind manual push to moving around

Specification:

• Load Capacity: 181kg
• Load Center: 254mm
• Overall Length: 1100mm
• Overall Width: 650mm
• Lowest Mast Height: 1710mm
• Lift Height (fork up): 3100mm
• Lift Height (fork down): 2500mm
• Minimum Fork Height: 51mm
• Fork Length: 570mm
• Single-Leg Width: 90mm
• Unit Weight: 68kg
