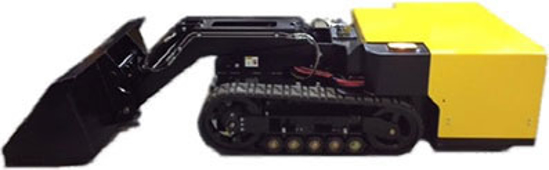

Minidozer M48 Terrain Mover

Minidozer M48 Terrain Mover
Part No: EW-MDM48
*
Call for pricing

Minidozer M48 Terrain Mover

Description / Technical Details
FrameSteel
CabinetAluminum
Length110 in2794 mm
Width48 in1219 mm
Height (Frame)22 in558.8 mm
Height (Bucket elevated to max.)58 in147.32 cm
Clearance underneath bucket (at max. height)37.5 in95.25 cm
Lifting CapacityUp to 1000 lbsUp to 453 kg
Bucket Capacity1.485 yd31.13 m3
Weight3440 lbs1560.4 Kg
Linear speed66 ft/min20.1 m/min
Power
Motor2
Horse Power (HP)2 HP
Gearbox75:1
Hydraulic Motor Bucket1 x 2 HP
Power Features
Battery included435 Amps at 6V (x8)
External AC-DC Battery Charger1
Battery Pack Amperage435 Amps (x2)
Operating voltage24 VDC
Full recharge time/battery10 hours
Continuous Run-Time*10 hours (flat surface)
