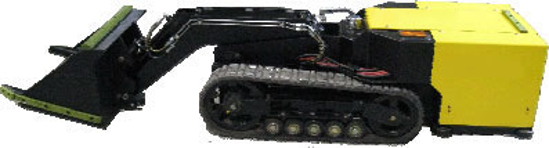

Minidozer M27 Terrain Mover

Minidozer M27 Terrain Mover
Part No: EW-MDM27
*
Call for pricing

Minidozer M27 Terrain Mover

Description / Technical Details
FrameSteel
CabinetAluminum
Length112.701 in2863 mm
Width27.75 in705 mm
Height (Frame)22.33 in567 mm
Height (Bucket elevated to max.)62.5 in158.75 cm
Clearance underneath bucket (at max. height)37.5 in95.25 cm
Lifting CapacityUp to 1000 lbsUp to 453 kg
Bucket Capacity1.485 yd31.13 m3
Weight2200 lbs998 kg
Linear speed66 ft/min20.1 m/min
Power
Motor2
Horse Power (HP)2 HP
Gearbox75:1
Hydraulic Motor Bucket1 x 2 HP
Power Features
Battery included435 Amps at 6 volts (x4)
External AC-DC Battery Charger1
Battery Pack Amperage435 Amps (x1)
Operating voltage24 VDC
Full recharge time/battery8 hours
Continuous Run-Time*8 hours (flat surface)
