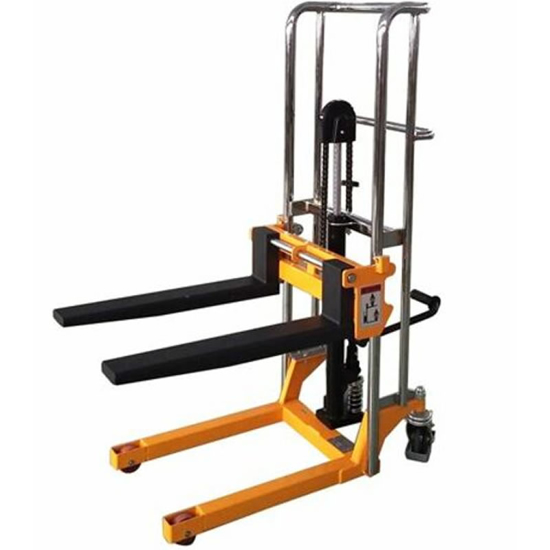

Manual Platform Stacker 1800mm 400Kg

This Manual Platform Stacker 1800mm lift height 400kg capacity and has adjustable forks and removable platform. It has foot pedal brakes, two frame rollers and two steering rollers make sure the stacker stable and safe operation.
Part No: EW-MPS1800
*
$1,310.00 excl GST

Manual Platform Stacker 1800mm lift height with Adjustable Forks 400Kg

This Manual Platform Stacker has adjustable forks and removable platform. It has foot pedal brakes, two frame rollers and two steering rollers make sure the stacker stable and safe operation.

Specification:

  • Capacity: 400kg
  • Min-Max Lift height: 85mm-1800mm
  • Overall Height: 2010mm
  • Overall Length: 1100mm
  • Overall Width: 580mm
  • Fork Length: 650mm
  • Single Fork Width: 100mm
  • Inside Forks Width Range: 100mm-345mm
  • Outside Forks Width Range: 207mm-540mm
  • Plantform Size: 650mm x 576mm
  • Support Legs Length: 580mm
  • Support Legs Height: 76mm
  • Inside Support Legs Width: 370mm
  • Outside Support Legs Width: 470mm
  • Single Support Legs Width: 50mm
  • Unit weight: 92kg
