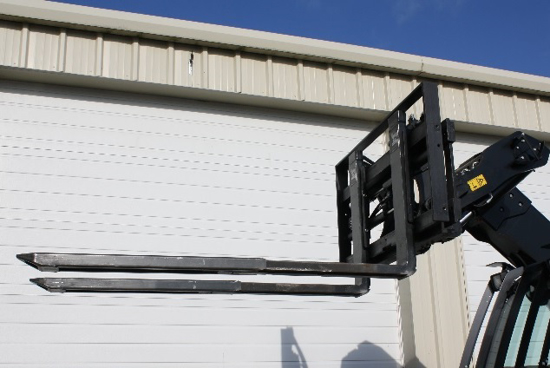

Kooi Hydraulic Reach Forks Various Lengths / Capacities

Kooi Hydraulic Reach Forks are extendible and retractable forks, that save you time, space and money by allowing you to reach double deep into racking or truck. Available from 2 tonne to 10.5 tonne capacity

Part No: Reach Forks

Shipping Charges *

Call for pricing

Kooi Hydraulic Reach Forks are manufactured by Meijer Special Equipment in the Netherlands, reachforks are hydraulically extendible and retractable forks, that save you time, space and money. Available from 2 tonne to 10.5 tonne capacity. Reachforks allow for ‘double-deep’ stacking increasing warehouse capacity by up to 30% compared to ‘single-deep’ warehouse operations.

Reachforks also allow trucks to be be loaded and unloaded from one side. Turning the vehicle or driving the forklift to the opposite side is eliminated. This saves time and space and also makes the operation much safer.

Options such as pallet stops, height shift systems to adjust for uneven ground or diffcult loads, and camera systems are all available for these Reachforks.

Model No	Length ('L' mm)	Stroke ('K' mm)	Pocket Size ('D' x 'S' mm	Lost Load ('c' mm)	SWL (kg) at 'LC' mm			Weight per Pair (kg)
Model No	Length ('L' mm)	Stroke ('K' mm)	Pocket Size ('D' x 'S' mm	Lost Load ('c' mm)	600	1450	1750	Weight per Pair (kg)
EW-RG230 1100/750	1100	750	140 x 56	45	2000	825	685	160
EW-RG230 1200/850	1200	850	140 x 56	45	2000	825	685	170
EW-RG230 1350/1000	1350	1000	140 x 56	45	3000	1235	1020	190
EW-RG435 1200/850	1200	850	170 x 56	45	2500	1035	850	185
EW-RG435 1350/1000	1350	1000	170 x 56	45	3000	1450	1200	230
EW-RG445 1200/850	1200	850	170 x 56	45	4500	1850	1550	215
EW-RG445 1350/1000	1350	1000	170 x 56	45	4500	1850	1550	235

Kooi Hydraulic Reach Forks
