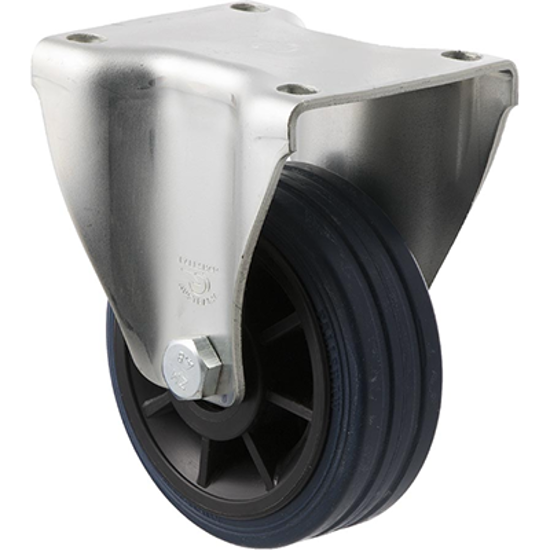

Heavy Duty Castors 150-300kg

Quality Australian Made J Series Heavy Duty Castors are able to carry up to 300 kg each, the range of heavy duty J Series castors are available in 100 and 125 mm sizes, and in a wide range of wheel types. Easy process to order: 1> Pick wheel type - Blue high resilience elastomer, polyurethane, hard nylon, cast iron 2> Pick Fork Type - Zinc plated Core Coat™ in swivel plate, fixed plate, bolt hole, total brake and direction lock configurations 3> Call Us with above info and quantities Scroll Down to see the many options / combinations.
Call for pricing

Heavy Duty Castors 150-300kg

Load rating:150–300 kg
Wheels:Blue high resilience elastomer, polyurethane, hard nylon, cast iron
Forks:Zinc plated Core Coat™ in swivel plate, fixed plate, bolt hole, total brake and direction lock configurations
Warranty:Three years
Country of originMade in Australia

Super Easy to Order / Get a Quote

Step 1 - Pick Wheel Type

JBRJCRJNRJUR

Blue high resilience elastomer

Roller Bearing

150-180kg

Cast iron

Roller Bearing

230kg

Hard nylon

Roller Bearing

300kg

Polyurethane on nylon

Roller Bearing

300kg

Thread guard: Optional


Step 2 - Pick Fork Type

JZPJZPTBJZFJZHJZHTB
Plate with Swivel

Plate with Swivel and Total brake

Fixed plate

Bolt holeBolt hole and total brake

Max LoadDiameter x TreadHub BoreFork TypeFork TypeFork TypeFork TypeFork Type
Wheel(kg)(mm)(mm)JZPJZPTBJZFJZHJZHTB
JBR100150-180100 x 3245 x 10JBR100-JZPJBR100-JZPTBJBR100-JZFJBR100-JZHJBR100-JZHTB
JBR125150-180125 x 3245 x 10JBR125-JZPJBR125-JZPTBJBR125-JZFJBR125-JZHJBR125-JZHTB
JCR100230100 x 3845 x 10JCR100/JZPJCR100/JZFJCR100/JZH
JNR100300100 x 3545 x 10JNR100/JZPJNR100/JZPTBJNR100/JZFJNR100/JZHJNR100/JZHTB
JNR125300125 x 3545 x 10JNR125/JZPJNR125/JZPTBJNR125/JZFJNR125/JZHJNR125/JZHTB
JUR100300100 x 32, 3845 x 10JUR100/JZPJUR100/JZPTBUNR100/JZFJUR100/JZHJUR100/JZHTB
JUR125300125 x 32, 3845 x 10JUR125/JZPJUR125/JZPTBJUR125/JZFJUR125/JZHJUR125/JZHTB

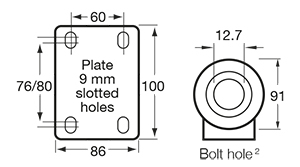

Mount dimensions:


Step 3 - Call Us with above info and quantities
