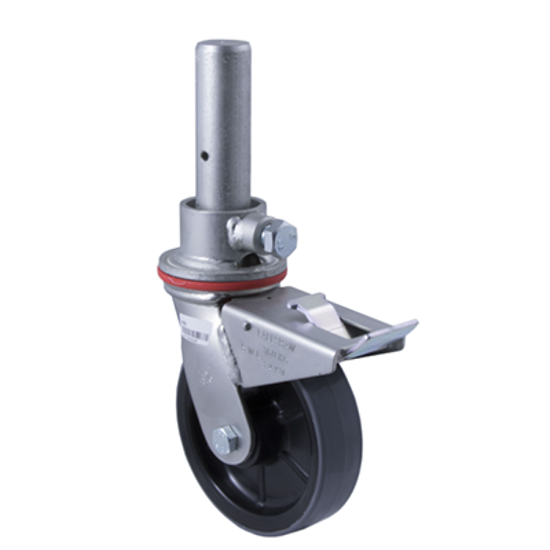

Heavy Duty Scaffold Castors 360-500kg

Quality Australian Made H Series Scaffold castors are able to carry up to 500 kg each, the range of H Series Scaffold castors are available in 150 and 200 mm sizes, and in a wide range of mount types. Scaffolding castors meet OHS codes and Australian standards. An effective wheel/swivel brake is fitted to ensure maximum stability. Easy process to order: 1> Pick wheel type - Polyurethane on nylon (Fallshaw HUR wheel) 2> Pick Fork Type - Zinc plated Core Coat™ in bolt hole with pintle or ISO plate, with total brake configuration 3> Call Us with above info and quantities Scroll Down to see the many options / combinations.

Select Shipping Option Here

Call for pricing

Heavy Duty Scaffold Castors 360-500kg

Load rating:	360–500 kg
Wheels:	Polyurethane on nylon (Fallshaw HUR wheel)
Forks:	Zinc plated Core Coat™ in bolt hole with pintle or ISO plate, with total brake configuration
Warranty:	Three years
Country of origin	Made in Australia

Super Easy to Order / Get a Quote

Step 1 - Pick Wheel Type

HUR150

HUR200

Cast iron

Roller Bearing

Polyurethane

150mm

360-450kg

Cast iron

Roller Bearing

Polyurethane

200mm

500kg

Step 2 - Pick Mount Type

Socket mount (to fit over tubes)	Socket mount (to fit over tubes)	ISO plate mount	ISO plate mount

SC08	SC13	SC61	SC18
Swivel castor with scaffold pintle and total brake 51 mm socket mount to fit over tubesWheel Max load: 360kg Mount hight: 188mm Turning radius: 165mm Wheel diameter: 150mm	Swivel castor with scaffold pintle and total brake 51 mm socket mount to fit over tubes Max load: 500kg Mount hight: 238mm Turning radius: 175mm Wheel diameter: 200mm	Swivel castor with ISO plate and total brake 130 mm 100 mm ISO plate Max load: 360kg Mount hight: 188mm Turning radius: 165mm Wheel diameter: 150mm Plate size: 130 x 100mm	Swivel castor with ISO plate and total brake 130 mm 100 mm ISO plate Max load: 500kg Mount hight: 238mm Turning radius: 175mm Wheel diameter: 200mm Plate size: 130 x 100mm
Solid stem mount (fully welded cup)	Solid stem mount (fully welded cup)	Stem mount (to fit into tubes)	Stem mount (to fit into tubes)

SC62	SC15	SC30	SC11
Swivel castor with ISO plate and total brake 38 mm solid stem mount with fully welded cup Max load: 360kg Mount hight: 188mm Turning radius: 165mm Wheel diameter: 150mm	Swivel castor with scaffold pintle and total brake 38 mm solid stem mount with fully welded cup Max load: 500kg Mount hight: 238mm Turning radius: 175mm Wheel diameter: 200mm	Swivel castor with scaffold pintle and total brake 38 mm stem mount to fit into tubes Max load: 360kg Mount hight: 188mm Turning radius: 165mm Wheel diameter: 150mm	Swivel castor with scaffold pintle and total brake 38 mm stem mount to fit into tubes Max load: 500kg Mount hight: 238mm Turning radius: 175mm Wheel diameter: 200mm

Model No	Description	Wheel	Max Load (kg)	Diameter x Tread (mm)
SC08	HUR150/HZHTB + 51 stem Scaffold - Castor	HUR150	450	150 x 40
SC61	HUR150/HZPTB with ISO plate Scaffold - Castor	HUR150	450	150 x 40
SC62	HUR150/HZHTB + 38 stem-cap Scaffold - Castor	HUR150	450	150 x 40
SC30	HUR150/HZHTB + 38 stem Scaffold - Castor	HUR150	450	150 x 40
SC13	HUR200/HZHTB + 51 stem Scaffold - Castor	HUR200	500	200 x 48
SC18	200mm Polyurethane swivel castor, 500Kg capacity Scaffold range	HUR200	500	200 x 48
SC15	HUR200/HZHTB + 38 stem-cap Scaffold - Castor	HUR200	500	200 x 48
SC11	HUR200/HZHTB Scaffold castor with 150mm x 38mm solid stem 200mm wheel, 500Kg capacity	HUR200	500	200 x 48

Step 3 - Call Us with above info and quantities
