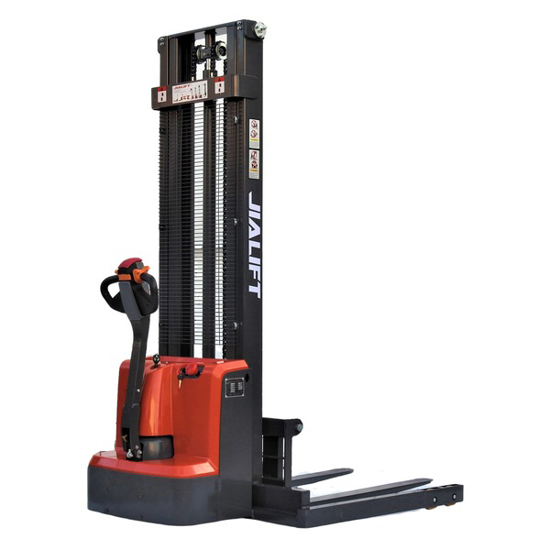

Full Electric Straddle Stacker 1000kg 3000mm Lift
Full Electric Pallet Stacker is easy to control, and environmental efficiency, which is widely used in overhead cargo and pallet moving and stacking. Using SPN is safe and efficient in factories, warehouses, and logistics centers. While in some narrow passage, floors, and other high rack warehouses, using SPN is more flexible, silent and environmental.
- *
Full Electric Straddle Stacker 1000kg 3000mm Lift
With electric lift and manual push, SPN series full-electric pallet stacker is easy to control, and environmental efficiency, which is widely used in overhead cargo and pallet moving and stacking. Using SPN is safe and efficient in factories, warehouses and logistics centers. While in some narrow passage, floors, and other high rack warehouses, using SPN is more flexible, silent and environmental.
Straddle Legs Models suit for use on Standard Australian Pallet.
Advantages:
- The steering wheel seat in the middle.
- Build-in charger, it’s more convenient.
- Turtle speed switch on the handle makes low-speed control more precise
- Straddle leg design ideal for lifting enclosed pallet
- Intelligent control and drive technology, flexible and safe operating
- Adjustable fork width
- Easy service and maintenance
Specification:
- Power: Battery
- Capacity: 1000kg
- Loan Capacity on Max Height: 700kg
- Load center distance: 600mm
- Lifting height: 3000mm
- Fork length: 1150mm
- Fork width: 210-830mm
- Overall length: 1800mm
- Overall width: 1325mm
- Inside width between two legs: 1225mm
- Lower Mast Height: 1994mm
- Extended Mast Height: 3424mm
- Min.fork height: 85mm
- Single fork width: 100mm
- Lifting motor: 2.2Kw
- Driving motor: 0.75kw
- Battery voltage: 12V/120Ah
- The charger: 24V/10A
- N.W.: 5000kg
Warranty: 1 Year labour & parts warranty.
The color of the photo may vary from the actual product.
