Freestanding Bulk Bag Filling Frame

Bulk Bags are widely used as a cost effective, efficient and eco-friendly solution for storing and transporting bulk materials. Fully loaded, their size and weight require the right equipment to ensure the safe and productive handling of bulk bags in the workplace. The BBS50 Bulk Bag Stand is designed to safely hook open a bulk bag for filling. This lightweight frame provides an effective solution for collecting recycling, industrial, excavation and site waste or as a low cost bulk material filling station.
Part No: EW-BBFF
*
*
$2,280.00 excl GST

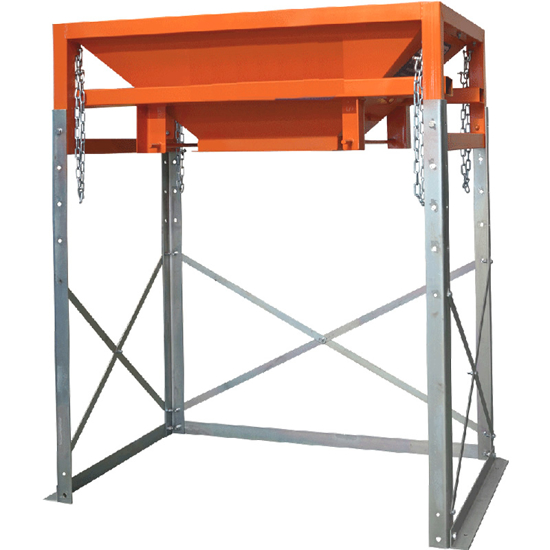

Freestanding Bulk Bag Filling Frame

The BBFF Bulk Bag Filling Frame saves hours of labour and reduces risk of injury. This frame is designed to safely hook open a bulk bag and fill with free-flowing bulk products such as sand and gravel etc, removing the need for the operator to hold the bag open or manually fill themselves.

Features:

  • Bulk bag can be held in position by either the bag retaining pin mounts allowing for easy removal by forklift or pallet jack, or the adjustable bag restraining chains allowing bag to be positioned at optimal height
  • 3 adjustable height settings allow optimal removal of filled bags to suit your operational requirements
  • Fork pockets fitted for easy transport around the worksite
  • Optional clamshell gate (BFU250CS) for maximum material flow and control
  • Optional spill guard (BFU250SG)
  • Supplied with 4 safety swivel hooks and retaining pin mounts
  • Enamel paint finish

Specification:

  • Working Load Limit (WLL) : 1000kg
  • Load Centre : 900mm
  • Dimensions : 1800 x 1150mm
  • Adjustable Height Settings : 3
  • Unit Height : 1700 - 2195mm
  • Unit Weight : 270kg
  • Fork Pocket Size : 140 x 65mm
  • Fork Pocket Centres : 850mm
