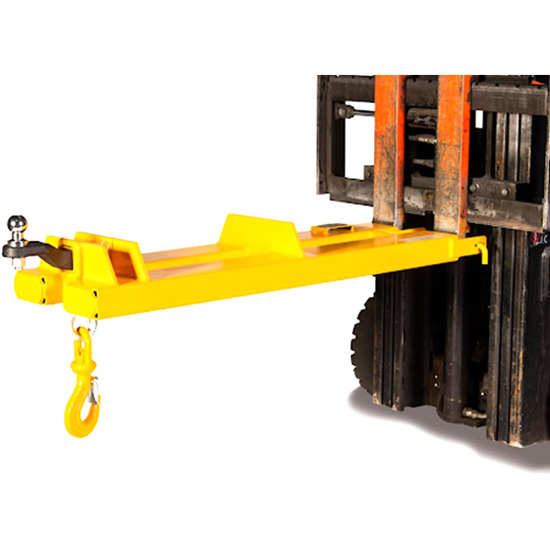

Picture of Forklift Tow Jib Attachment 3200kg
Picture of Forklift Tow Jib Attachment 3200kg
Picture of Forklift Tow Jib Attachment 3200kg

Forklift Tow Jib Attachment 3200kg

This forklift attachment is a slip on style unit that has two hook locations with 3200Kg load capacity and gives the operator a 569/1174mm load point from the forklift carriage face. The second function of the Forklift Towball Jib allows the towball fitting to assist with the movement of standard hitch trailers with a maximum ball load weight of 10% of the capacity or 300Kgs dead weight at hitch point.
Part No: EW-AUS-TOW-QHITCH
*
$1,250.00 excl GST

Forklift Tow Jib Attachment 3200kg

This Forklift Towball Jib attachment is a dual use forklift attachment that allows the fork operator two functions of use.
This forklift attachment is a slip on style unit that has two hook locations with 3200Kg load capacity and gives the operator a 569/1174mm load point from the forklift carriage face.
The second function of the Forklift Towball Jib allows the towball fitting to assist with the movement of standard hitch trailers with a maximum ball load weight of 10% of the capacity or 300Kgs dead weight at hitch point.
Notes:
Equipment warehouse recommends that the users check the Fork Truck is fit for purpose prior to using the attachment and should check with the Fork Truck Manufacturer to ensure the attachment unit can be used.
Specifications:
  • WLL : 3200kg at 2 lift points
  • Maximum Towing Capacity : 3200kg
  • Maximum Towball Dead Weight : 300kg
  • Tyne Pockets : 142mm x 66mm
  • Tyne Pocket Centres : 252mm
  • Finish : Powder - Coated Safety Yellow
  • Length : 1469mm
  • Width : 428mm
  • Height : 486mm
  • Weight : 58kg
  • Fitted with Wallace Forge / Hayman Reese compatible hitch
  • to suit 1070mm and 1220mm length forks
  • VCG 54mm
  • HCG 677mm
  • Proudly Australian Made
