Extendable Forklift Tynes Class 2 1350mm/1000mm (Single Cylinder)

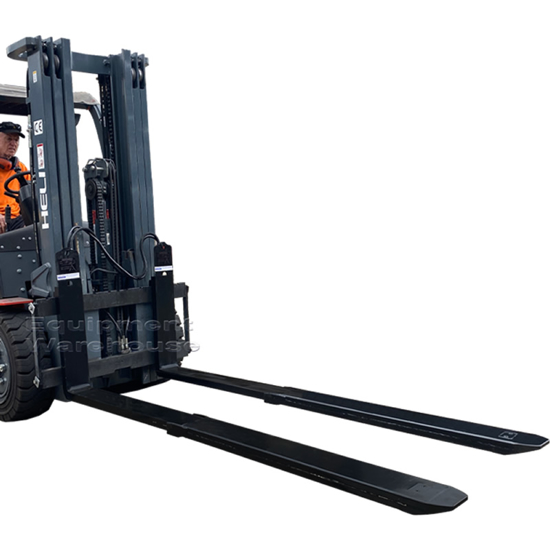

Extendable Hydraulic Forklift Tynes hydraulically extend 1350mm to 2350mm and retract for double deep stacking and one-sided loading/unloading of truck without repositioning your forklift.

Part No: EW-EFT-C2-225-1350-1000

Shipping Charges *

$5,420.00 excl GST

Extendable Forklift Tynes Class 2 1350mm/1000mm (Single Cylinder)

Extendable Hydraulic Forklift Tyne hydraulically extend and retract for double deep stacking and one-sided loading/unloading. These forks help reduce loading times, increase warehouse storage capacity and vastly improve safety. One-sided loading/unloading eliminates the need to turn the vehicle or drive forklift to the opposite side making the operation safer. Double deep stacking can increase warehouse capacity by up to 30% compared to single deep warehouse operation..

Description:
- Allows double deep stacking, increasing warehouse capacity
- Allows one-sided loading and unloading, saving time and increasing driver safety
- Phasing cylinders keep fork motion in sync
- Reinforced heel gives less deflection
- Easy connection of the forks onto the fork carrier
- Dual cylinder models provides greater push/pull power, ideal for performing under demanding circumstances
- Requires one additional hydraulic function
- Local technical support and spare parts
- Optional Pallet Stops prevent forks from protruding through to the rear pallet

  Specifications:
  - Class : 2
  - WLL at 600mm LC (kg) : 2500
  - Cylinders per fork : Single
  - Length (mm) : 1350
  - Extension (mm) : 1000
  - Section w x h (mm) : 132 x 57
  - Lost Load (mm) : 45
  - Weight per pair (kg) : 177
