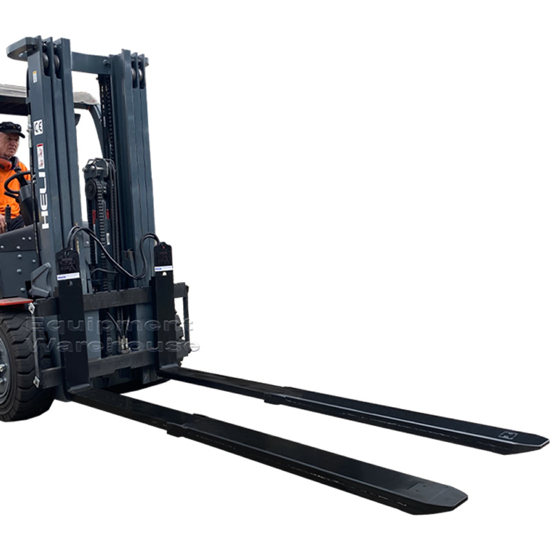

Extendable Forklift Tynes Class 2 1200mm/850mm (Single Cylinder)

Extendable Hydraulic Forklift Tynes hydraulically extend 1200mm - 2050mm and retract for double deep stacking and one-sided loading/unloading of truck without repositioning your forklift.

Part No: EW-EFT-C2-225-1200-850

Shipping Charges *

$5,050.00 excl GST

Extendable Forklift Tynes Class 2 1200mm/850mm (Single Cylinder)

Extendable Hydraulic Forklift Tyne hydraulically extend and retract for double deep stacking and one-sided loading/unloading. These forks help reduce loading times, increase warehouse storage capacity and vastly improve safety. One-sided loading/unloading eliminates the need to turn the vehicle or drive forklift to the opposite side making the operation safer. Double deep stacking can increase warehouse capacity by up to 30% compared to single deep warehouse operation.

Description:

Allows double deep stacking, increasing warehouse capacity
Allows one-sided loading and unloading, saving time and increasing driver safety
Phasing cylinders keep fork motion in sync
Reinforced heel gives less deflection
Easy connection of the forks onto the fork carrier
Dual cylinder models provides greater push/pull power, ideal for performing under demanding circumstances
Requires one additional hydraulic function
Local technical support and spare parts
Optional Pallet Stops prevent forks from protruding through to the rear pallet

Specifications:

Class : 2
WLL at 600mm LC (kg) : 2500
Cylinders per fork : Single
Length (mm) : 1200
Extension (mm) : 850
Section w x h (mm) : 132 x 57
Lost Load (mm) : 45
Weight per pair (kg) : 162
