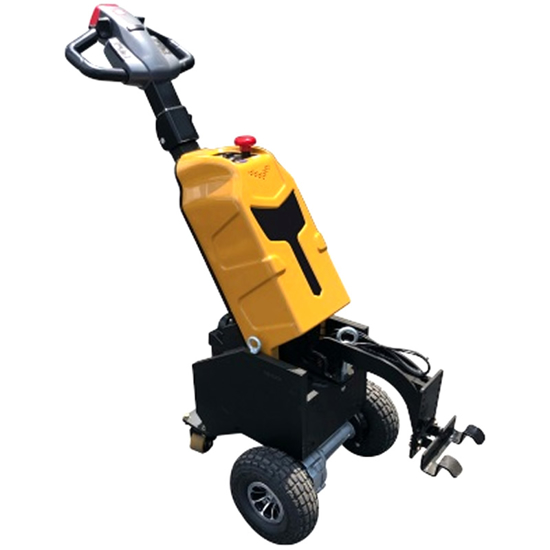

Picture of Electric Tug 1500kg 24V 20AH Li-Ion
Picture of Electric Tug 1500kg 24V 20AH Li-Ion
Picture of Electric Tug 1500kg 24V 20AH Li-Ion

Electric Tug 1500kg 24V 20AH Li-Ion

This tow tractor with its 1500kg pushing / pulling capacity makes it a simple tool to tow trolleys and bins around your warehouse. With the compact design, this tow truck is designed for narrow aisles and can climb slopes up to 3%. With 250mm diameter pneumatic tyres, the tow trucks are ready for a variety of operations, flat ground in the warehouse, or on uneven floors or outdoors. This is equipped with a 24V/20Ah Li-Ion battery with integrated charger, so they can be charged anywhere and anytime.
Part No: EW-TT1500
*
$5,470.00 excl GST

Electric Tug 1500kg 24V 20AH Li-Ion

This tow tractor with its 1500kg pushing / pulling capacity makes it a simple tool to tow trolleys and bins around your warehouse. With the compact design, this tow truck is designed for narrow aisles and can climb slopes up to 3%. With 250mm diameter pneumatic tyres, the tow trucks are ready for a variety of operations, flat ground in the warehouse, or on uneven floors or outdoors. This is equipped with a 24V/20Ah Li-Ion battery with integrated charger, so they can be charged anywhere and anytime.
Description:
  • Strong tracking tows up to 1.5 ton on a slope on 3 degrees.
  • Handle with 3 positions, safety reversing switch and horn.
  • Easy to manoeuvre with pneumatic tyres with a diameter of 250mm.
  • Internal charger, easy to charge in a standard socket.
  • The height of the handle is adjustable for user comfort.
  • 24volt DC drive motor and controller.
  • Electronic motor braking provides stopping force when not under power.
  • Battery discharge indicator, emergency power disconnects and key switch.
Specification:
  • Drive unit : Battery Electric
  • Operator type : Pedestrian
  • Rated capacity [Q] : 1500kg
  • Rated drawbar Pull [F] : 300
  • Wheelbase [Y] : 310mm
Weights:
  • Service weight (include battery) : 245kg
  • Axle loading with load,driving side/loading side : 245/0 kg
  • Axle loading without load,driving side/loading side : 195/50 kg
Type, Chasis:
  • Tyre type driving wheels/loading wheels : Solid Rubber
  • Tyre size, driving wheels (diameter x width) : 2x Ф250×85
  • Tyre size, loading wheels (diameter x width) : 2x Ф74×48
  • Wheels, number driving/loading (x=drive wheels) : 2x/2
  • Tread width, front driving side [b10] : 428 mm
  • Tread width, rear driving side [b11] : 217 mm
Dimensions:
  • Height drawbar in driving position, min./max. : 965~1040~1130
  • Overall Length : 1250~1310~1340
  • Overall Width : 520 mm
Performance:
  • Travel speed, with/ without load : 4.5/5 Km/h
  • Drawbar pull, laden/unladen : 300/0
  • Max. drawbar pull, laden/unladen : 650/0
  • Gradeability, laden/unladen : 3/16 %
  • service brake : Electromagnetic
  • Drive motor rating 60 min : 0.4 kW
  • Battery Volatage/Nominal Capacity : 24/20 V/Ah
  • Type of driving control : DC
  • Steering Type : Mechanical
  • Sound pressure level at the driver’s ear : 74 dB (A)
