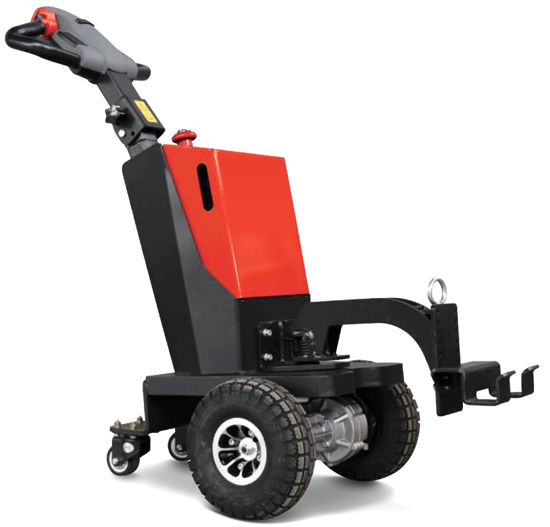

Electric Tug 1000kg 24V 20AH Li-Ion

This tow tractor with its 1000kg pushing / pulling capacity makes it a simple tool to tow trolleys and bins around your warehouse. With the compact design, this tow truck is designed for narrow aisles and can climb slopes up to 3%. With 250mm diameter pneumatic tyres, tow trucks are ready for a variety of operations, flat ground in the warehouse, or on uneven floors or outdoors. The QDD10L is equipped with a 24V/20Ah Li-Ion battery with integrated charger, so they can be charged anywhere and anytime.
Part No: EW-TT1000
*
$5,300.00 excl GST

Electric Tug 1000kg 24V 20AH Li-Ion


This tow tractor with its 1000kg pushing / pulling capacity makes it a simple tool to tow trolleys and bins around your warehouse. With the compact design, this tow truck is designed for narrow aisles and can climb slopes up to 3%. With 250mm diameter pneumatic tyres, tow trucks are ready for a variety of operations, flat ground in the warehouse, or on uneven floors or outdoors. The QDD10L is equipped with a 24V/20Ah Li-Ion battery with integrated charger, so they can be charged anywhere and anytime.
Description:
  • Strong tracking tows up to 1 ton on a slope on 3 degrees.
  • Small and compact, lightweight of 98kg.
  • Handle with 3 positions, safety reversing switch and horn.
  • Easy to manoeuvre with pneumatic tyres with a diameter of 250mm.
  • Internal charger, easy to charge in a standard socket.
  • The height of the handle is adjustable for user comfort.
  • 24volt DC drive motor and controller.
  • Electronic motor braking provides stopping force when not under power.
  • Battery discharge indicator, emergency power disconnects and key switch.
Specifications:
  • Rated capacity : 1000 kg
  • Rated drawbar pull : 200 N
  • Wheelbase Y : 320 mm
  • Service weight (includes battery) : 120 kg
  • Tyre type driving/ load wheels : Pneumatic
  • Tyre size, drive wheel (diaxwid) : 2x 250x85 mm
  • Tyre size, load wheel (diaxwid) : 2x 75x32 mm
  • Height drawbar in driving position min/max : 841~936~1016 mm
  • Overall length : 1210~1270~1300 mm
  • Overall width : 520 mm
  • Travel speed, lade / unladen : 4.5/5 km/h
  • Drawbar pull, laden/unladen : 200 N
  • Max drawbar pull, laden / unladen : 650 N
  • Gradeability, laden/ unladen : 3/16 %
  • Service brake type : Mechanical
  • Drive motor rating S2 60min : 0.4 kW
  • Battery : 24/20 V/Ah
