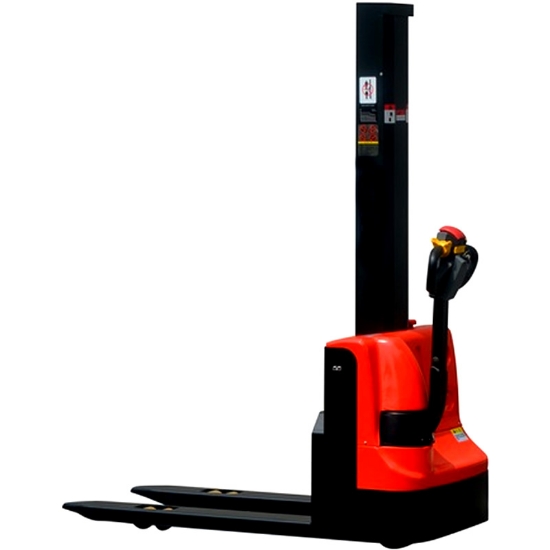

Electric Straddle Stacker 1000kg 1600mm Lift

Electric Straddle Stacker 1000kg 1600mm Lift

This electric economy stacker offers an attractive appearance, convenient operation and features. With a lifting capacity of 1000kg.

Description:

• The side-driven design effectively reduces the size of the operation channel. With a small turning radius and better view, this stacker is suitable for narrow spaces.
• Thought it is economical power stacker, it is still equipped with high-power and high- performance lifting pump station, which ensures the goods lifting.
• The turtle speed switch on the handle makes low-speed control more precise.
• Germany imported waterproof micro-switches are applied in the cold, damp, dusty and other harsh environments.
• YONGCI motor drive system is with small size, light weight, low loss and high efficiency.

Specification:

• Capacity: 1000 kg
• Load Capacity on Max Height: 800kg
• Lifting height: 1600 mm
• Turning Radius: 1316 mm
• Load Center Distance: 600 mm
• Fork Length: 1150 mm
• Fork Outside Width: 570 / 695 mm
• Single Fork Width: 160 mm
• Min Fork Height: 86 mm
• Support Leg Length: 928 mm
• Support Leg Height: 75 mm
• Single Support Leg Width: 124 mm
• Support Leg Inside Width: 410 mm
• Support Leg Outside Width: 660 mm
• Overall Length: 1632 mm
• Overall Width: 795 mm
• Lifting Motor: 2.2 kw
• Unit Weight: 410 kg
