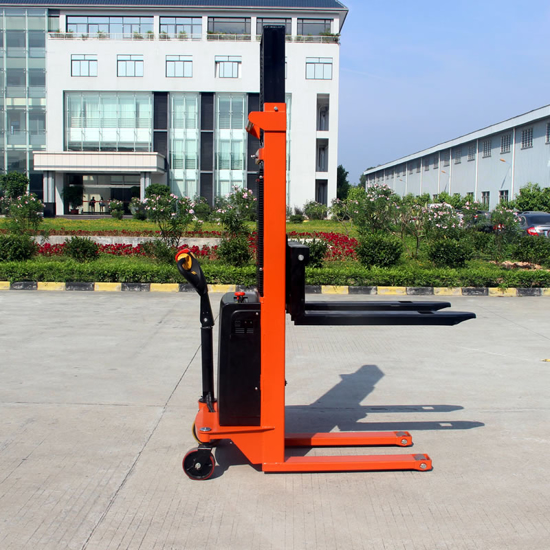

Electric Pallet Stacker 1500kg/3.0m

Electric Pallet Stacker 1500kg/3.0m

This full electric narrow pallet stacker is Suitable for open pallets/skid, narrow plastic pallets, equipment, boxes, machinery etc. It has External charger (small charger 2kg weight), plugs straight into power point.

Description:

• Full electric, forward, reverse, lift and drop
• Extra heavy duty steel frame, Chain and Ram
• Suitable for all heavy and light loads
• Suitable for open pallets/skid, narrow plastic pallets, equipment, boxes, machinery etc
• Economic and mobile work aid – can be used as a pallet jack as well
• External charger (small charger 2kg weight), plugs straight into power point
• Automatic magnetic brake system
• Polyurethane wheels for none marking, smooth drive and anti slip
• Emergency Stop Switch
• Safety reverse electric switch

Specification:

• Capacity: 1500kg, Lift height: 3000mm
• Turning radius 2800mm
• Single fork length 1000mm, width 150mm, thickness 65mm
• Min-Max Fork Height: 90mm-3000mm
• Adjustable forks width: 360mm – 690mm (Outer forks tips)
• Clearance between forks: 0 – 550mm
• Clearance between legs: 360mm, Overall legs width: 670mm
• Overall dimensions – 168(L) X 69(W) X 208(H) cm – weight 385kg
• Shipping dimensions – pallet – 168 x 120 x 222 cm – weight 415kg
