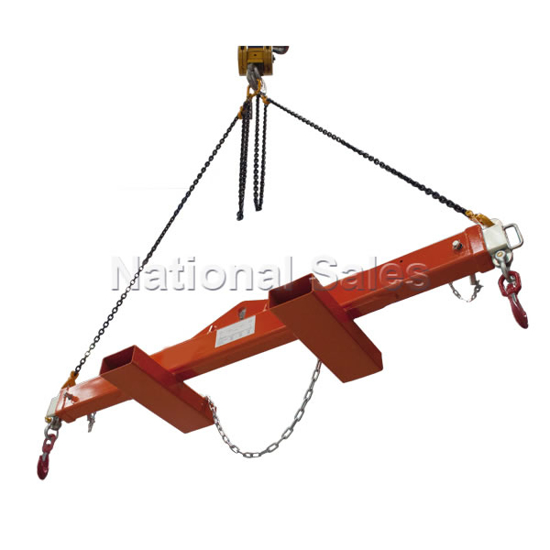

Crane Spreader Beam 9000 Kg Capacity

The type EW-CFL-2439 Spreader Beam is a unique multitasking Beam which can be used by Crane or Forklift to lift long loads. Using a Crane, loads can be lifted via the centre single hook point (as a "Lifting Beam"), or end lifted using a 2 leg Chain Sling (as a ‘Spreader Beam’). If lifting by forklift, the 600mm long slipper pockets allow for fast and safe connection to the truck.
Part No: EW-CFL-2439
*
$2,380.00 excl GST

The type EW-CFL-2439 Spreader Beam is a unique multitasking Beam which can be used by Crane or Forklift to lift long loads. Using a Crane, loads can be lifted via the centre single hook point (as a "Lifting Beam"), or end lifted using a 2 leg Chain Sling (as a ‘Spreader Beam’). If lifting by forklift, the 600mm long slipper pockets allow for fast and safe connection to the truck.

The Spreader Beam load connection points are adjustable to 3 positions by moving the extendable arms each end. Both extendable arms are locked into position via safety pins. The unit is supplied standard with a safety swivel hook each end.

The extendable arms are zinc plated with the main body painted in "safety orange".

The unit is fully "Third Party" certified to relevant Australian Standards.

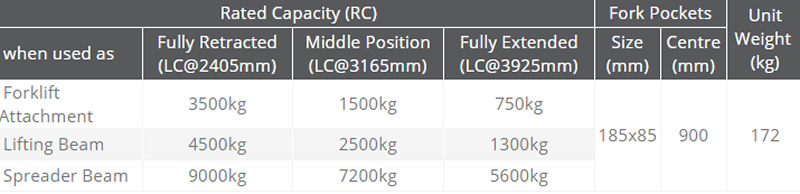

Specifications:

  • Rated Capacity (RC Max.): 9000kg
  • Load Centre (LC): 2405mm
  • Unit Weight: 172kg
  • F/Lift HCG: 300mm
