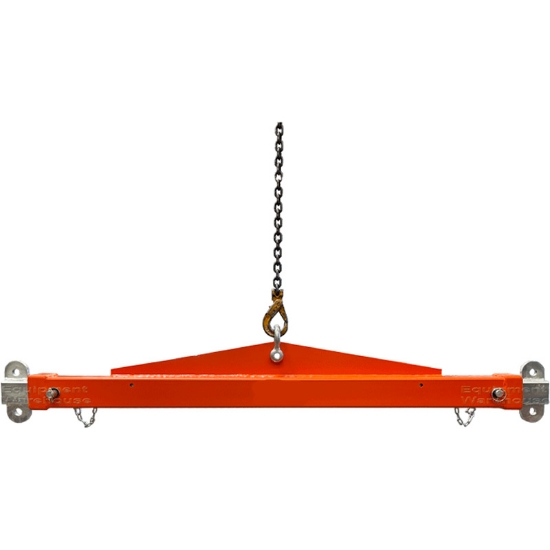

Crane Spreader Bar / Lifting Beam 5000kg

The EW-CEXL1726 Crane Spreader Beam is designed to lift long loads via the centre single hook point as a Lifting Beam, or end lifted using a 2 leg chain sling as a Spreader Beam / Crane Spreader Bar with a truck-mounted or overhead crane.
Part No: EW-CEXL-1726
*
$960.00 excl GST

Crane Spreader Bar / Lifting Beam 5000kg




The EW-CEXL1726 Crane Spreader Beam is designed to lift long loads via the centre single hook point as a Lifting Beam, or end lifted using a 2 leg chain sling as a Spreader Beam / Crane Spreader Bar with a truck-mounted or overhead crane.

Features:
  • Multi-tasking spreader beam / lifting beam
  • Used as a Lifting Beam by using the centre hook point
  • Used as a Spreader Beam / Spreader Bar when using the end hooks with a 2 leg chain sling
  • Retaining saddle brackets supplied for storage on truck trays
  • Load connection points are adjustable to 3 positions
  • Safety pins used to securely lock extendable arm in position
  • Fitted with 2 safety swivel hooks
  • Certified to the relevant Australian Standards
  • Zinc finish on extendable arms, enamel paint finish on main body
Specifications:
  • Unit Weight : 70 Kg
  • Length :
    • Fully Retracted (LC@1700mm) : 1775mm
    • Middle Position (LC@2150mm) : 2225mm
    • Fully Extended (LC@2600mm) : 2675mm
  • Lifting Beam :
    • Fully Retracted (LC@1700mm) : 3000KG
    • Middle Position (LC@2150mm) : 2000KG
    • Fully Extended (LC@2600mm) : 1000KG
  • Spreader Beam :
    • Fully Retracted (LC@1700mm) : 5000KG
    • Middle Position (LC@2150mm) : 5000KG
    • Fully Extended (LC@2600mm) : 5000KG
