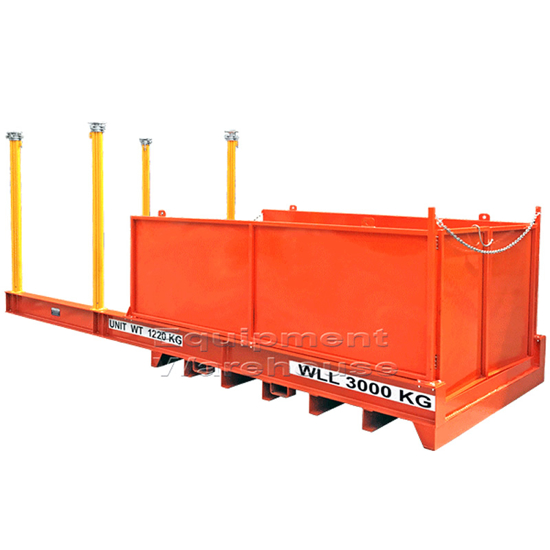

Picture of Crane Loading Deck 3000 Kg SWL
Picture of Crane Loading Deck 3000 Kg SWL
Picture of Crane Loading Deck 3000 Kg SWL
Picture of Crane Loading Deck 3000 Kg SWL
Picture of Crane Loading Deck 3000 Kg SWL

Crane Loading Deck 3000 Kg SWL

The Crane Loading Deck is a safe, convenient and cost effective access solution for loading and unloading materials at multi-storey and high rise projects by crane. Designed to suit smaller construction or demolition projects with limited or constrained space and lighter material loads, this temporary platform helps increase site safety and productivity, while reducing labour time and costs.
Part No: EW-CLD3000
*
Call for pricing

Crane Loading Desk 3000 Kg SWL

The Crane Loading Deck is a safe, convenient and cost effective access solution for loading and unloading materials at multi-storey and high rise projects by crane.  Designed to suit smaller construction or demolition projects with limited or constrained space and lighter material loads, this temporary platform helps increase site safety and productivity, while reducing labour time and costs.
Features:
  • Lightest and smallest loading deck available
  • Compact 2.8m outboard suits smaller jobs with limited space
  • Requires only 2.8 x 2.26m of space inside the building
  • 3 Tonne WLL
  • Quick & easy installation
  • 4 Adjustable alumnium support props supplied
  • Front and rear safety chains for added safety
  • Inward opening gate
  • Enamel paint finish
Specifications:
  • Working Load Limit (WLL) : 3000kg (uniformly distributed load)
  • Concentrated Load :  2000kg over 1 square metre
  • Overall Platform Dimensions (excl props) :  5600(l) x 2260(d) x 1560(h) mm
  • Outboard Dimensions :  2800(l) x 2260(d) mm
  • Internal Clearance :  2700(l) x 1900(d) mm
  • Inboard Dimensions (inside building space) :  2800(l) x 2260(d) mm
  • Adjustable Height (as supplied std) :  2206 - 3756mm
  • Unit Weight :  1220kg
