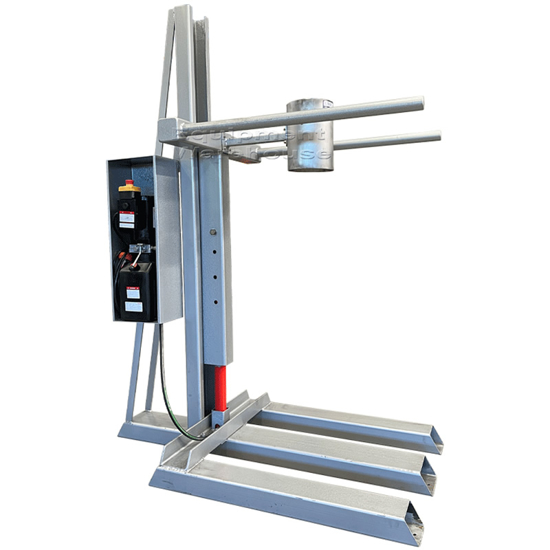

Picture of Bulk Bag Filling Station
Picture of Bulk Bag Filling Station
Picture of Bulk Bag Filling Station

Bulk Bag Filling Station

This Bulk Bag Filling Station is designed to allow filling of bulk bags, totes and open-top bags with dry, free-flowing materials, removing the need for the operator to hold the bag open or manually fill themselves. The simple design can be used as a stand alone solution or integrated into existing process lines.
Part No: EW-BBFS
*
$7,120.00 excl GST

Bulk Bag Filling Station


This Bulk Bag Filling Station is designed to allow filling of bulk bags, totes and open-top bags with dry, free-flowing materials, removing the need for the operator to hold the bag open or manually fill themselves.  The simple design can be used as a stand alone solution or integrated into existing process lines.

Features:
  • Allows filling of bulk bags, totes and open-top bags
  • Suits free-flowing materials such as plastic granules, grain, fertilizer and sand
  • Adjustable for a variety of bag heights
  • Hydraulic operated lift allows raising and lowering of bag whilst filling or full
  • Bulk bag lifting straps simply slide onto prong for ease of loading
  • Std filling head included or can be customised to suit application on request
  • Safe removal of full bags by forklift or pallet jack
  • Operator can disengage the bulk bag without leaving their seat
  • Fork pockets provided for transport purposes only
  • Enamel paint finish
Specifications:
  • Working Load Limit (WLL) : 1000kg
  • Dimensions : 970(w) x 1700(d) x 2260(h) mm
  • Adjustment Range : 1260 - 2130mm
  • Power Supply : 240V
  • Unit Weight : 240kg
  • Fork Pocket Size : 185 x 85mm
  • Fork Pocket Centres : 820mm
