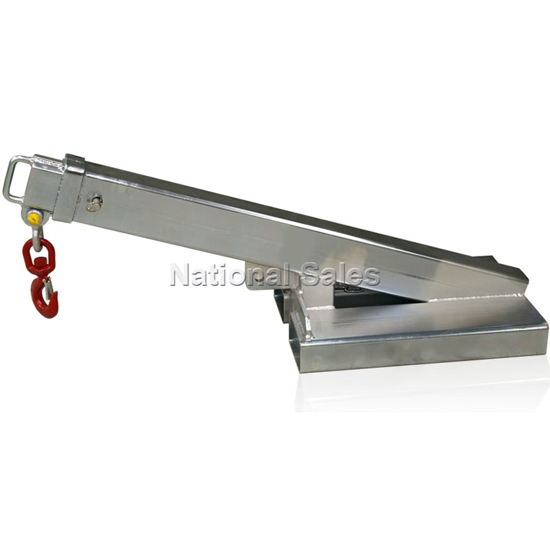

Budget Tilt Forklift Jib Attachment 3500kg

Budget Tilt Telescopic Forklift Jib Attachment 3500kg

The compact closed length of the jib allows for greater lifting capability and manouevrability while extending up to 2365mm in length gives extra versatility when required. The tilt angle of the boom increases the jibs capability while a safety chain securely attaches unit to the forklift.

Removal of the locking pin allows the jib to be extended giving a choice of four different lifting positions. A safety swivel hook is fitted as standard.

Zinc finish for durability. Certified to relevant Australian Standards and supplied with instruction sheet.

Products specifications

• SWL (kg) : 3500
• Load Centre (mm) : 800
• Pocket Size (mm) : 185 x 65
• Pocket Centres (mm) : 300
• Horizontal Centre of Gravity (mm) : 580
• Vertical Centre of Gravity (mm) : 110
• Unit Weight (Kg) : 115



  Position	1	2	3	4
  Extension	800mm	1390mm	1880mm	2365mm
  WLL	3500kg	850kg	500kg	350kg

Ex Stock Sydney, Brisbane, Melbourne and Perth
